Homecast HT3000
Digital Terrestrial High Definition Receiver
Developed to Freeview NZ Specifications:

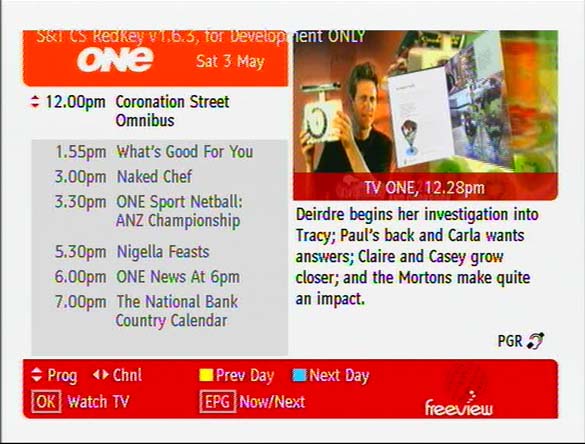

- MHEG-5 Middleware
- Freeview Transmission Rules
- HD Content Protection







Tuner & Demodulator

Specifications
Input Connector: 1 X IEC169-2, female
Loop through Connector: 1 X IEC169-2, male
Input Signal Frequency: VHF 174~230 Mhz, UHF 470~862MHz
Input Signal Level: -90~-20dBm
Input impedance: 75 Ohms nominal
IF Center Frequency: 36.167 Mhz
IF Bandwidth: 6.66 Mhz, 7.61MHz
Waveform: OFDM
Transmission mode: 2K FFT, 8K FFT
Constellations: QPSK, 16QAM, 64QAM
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
Guards intervals: 1/4, 1/8, 1/16, 1/32
FEC decoder: Reed-solomon Viterbi
Decoder, for 16 parity bytes
Block lengths 204 byte
MCPC and SCPC: Supported


MPEG

Specifications
Transport Stream: MPEG-2 ISO/IEC 13818 Transport Stream Specification
Video: MPEG-2 MP@ML, H.264/AVC
Audio: MPEG-1/2 Audio Layer 1,2, AC3(Dolby Digital), HE-AAC
Video bit rate: 1.5~15 Mbps
Active pixel: 1920x1080i, 1280x720p, 720x576p, 720x576i
Aspect ratio: 4:3 or 16:9
Audio Mode: Stereo, Dual channel, Joint stereo, Mono
Audio Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz


Connections
Port
Specifications
Video: TV SCART (RGB, CVBS, S-VIDEO)
VCR SCART (CVBS )
RCA (VIDEO)
Component (YPbPr)
HDMI
Audio: TV SCART
VCR SCART
RCA(Audio L,R)
SPDIF
Serial Port
RS232C D-sub male type
USB: Software Upgrades


Power Supply

Specifications
Input Voltage: 90~240VAC(SMPS), 50-60Hz (EEC-approval)
Power consumption:  Max. 24W
Protection: Separate internal fuse Lighting protection
Lighting protection


Enviromental

Specifications
Operating temperature: 0 ~ 45 C
Storage: -10 C ~ +50 C
Storage humidity range: 5 ~ 90% Rh Non condensing
Operating humidity range: 10 ~ 85% Rh Non condensing
Weight: 2.5Kg
Dimension(H x W x D): 55mm x 280mm x 233mm
